Tricab Flexible typeP Offshore Cables Tipo P en Latam

Tricab Flexible typeP Offshore Cables en Latam

Todas las soluciones de Tricab Cables en Latam. Cotizaciones en Cables Tricab en Argentina, Chile, Brasil, etc. Importador Oficial en Latam de Cables, soluciones Tricab en Cables en la región. Consulte!!!

Imagen relacionadaTricab Flexible 125ºC typeP Offshore Cables

Aprovechando  décadas de experiencia en el sector marino, Tricab ha incorporado a este rango, todas las funciones de usuario que sabe que tienen sentido práctico. Estos incluyen conductores flexibles, aislamiento flexible patentado y compuestos de cubierta, construcción liviana, baja propagación de humo, halógenos significativamente reducidos y un sistema único de cordón de remoción para una extracción simple y segura de la cubierta.

Cables Offshore Tipo P



FORMULARIO PARA COTIZACIÓN CABLES TRICAB LATAM📱
Nombre y Apellido

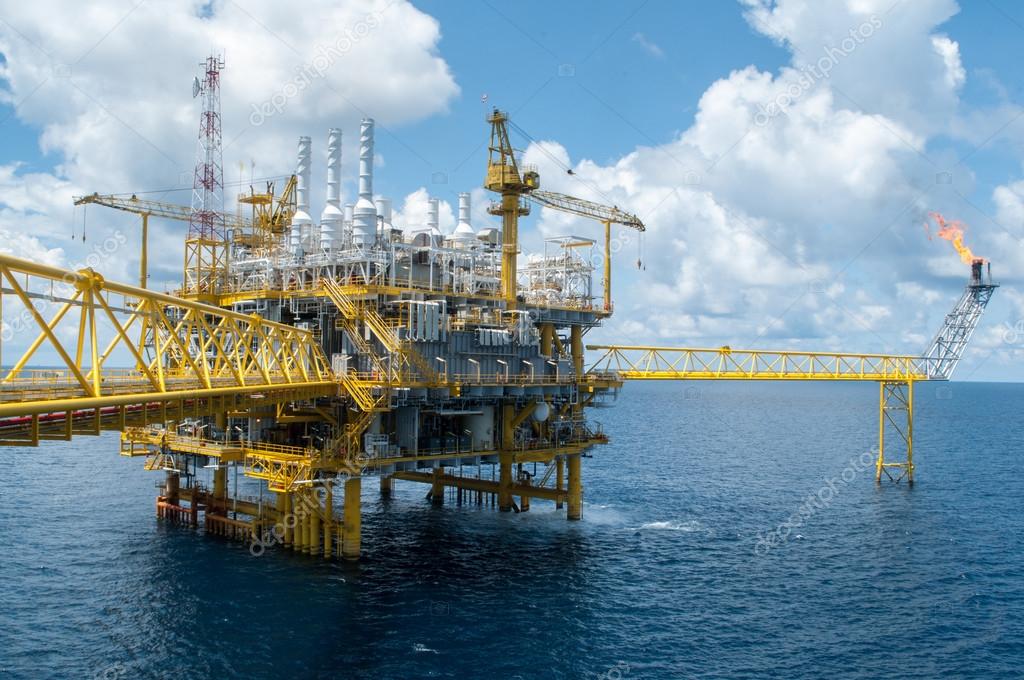

Imagen relacionada

Argentina – Uruguay – Chile – Brasil – Perú – Venezuela – etc.

Por supuesto, también se incluyen  características de servicio estándar de marcado de longitud, texto de impresión personalizado y empaque de longitud de corte. Tricab ha realizado grandes inversiones en nuevas instalaciones de fabricación de vanguardia en Massachusetts , para poder ofrecerle el producto y servicio de la mejor calidad posible.



BENEFICIOS
Proporciona una eliminación rápida y eficiente de cualquier longitud de cubierta o aislamiento sin el riesgo de dañar los componentes subyacentes. Elimina el riesgo de lesiones por el uso de cuchillas o cuchillas de afeitar.

Una flexibilidad significativamente mayor tiene numerosos beneficios prácticos, que incluyen un tiempo de instalación reducido y un manejo de cables más sencillo. Estos beneficios se traducen directamente en tiempo y costo de instalación reducidos.

Los conductores trenzados finos también ofrecen un rendimiento y una confiabilidad mejorados cuando se los somete a vibraciones.

Se pueden usar terminales, terminales y conectores, lo que ahorra tiempo de instalación, inventario y costo, y también proporciona un mejor contacto eléctrico con terminales redondos estándar.

Especialmente relevante para embarcaciones de alta velocidad, donde el ahorro de peso se traduce en un mejor rendimiento y beneficios en costos generales.

Se pueden instalar cables adicionales dentro de una bandeja de cable, escalera o conducto especificados. Un radio de curvatura más pequeño beneficia a las configuraciones ajustadas y las glándulas más pequeñas reducen el costo.

Menor tiempo y costo de instalación, radio de curvatura mejorado y manejo de cables más seguro (especialmente en tamaños más grandes).

Ayuda al proceso de instalación y permite una gestión precisa del stock.

Los códigos de referencia del proyecto, el nombre de la compañía, los números de pieza, los datos de calidad, la información de mercadeo, etc. pueden estar claramente marcados.





FORMULARIO PARA COTIZACIÓN CABLES TRICAB LATAM📱
Nombre y Apellido



Resultado de imagen para tricab marine cable



Catálogo de productos Tricab https://es.scribd.com/document/379242801/Industrial-Catalogue-v18-0-Lo-Res



Resultado de imagen para tricab marine cable



SERIES
Flame Retardant IEC 60332-1
Flame Retardant IEEE 1202 IEC 60332-3A
PAGE NUMBER
Features and Benefits 4
POWER AND CONTROL – 0.6/1kV 125ºC
Single Conductor PA ! ! ! 6
Single Conductor Armored PZ ! ! ! 7
Multi Conductor Power & Control PB ! ! ! 8
Multi Conductor Power & Control Armored PG ! ! ! 11 POWER AND CONTROL – 2kV 125ºC
Single Conductor PS ! ! ! 14
Single Conductor Jacketed PN ! ! ! 15
Single Conductor Armored PX ! ! ! 16 POWER AND CONTROL – 2kV Heavy Duty 125ºC
Single Conductor PT ! ! ! 17
Single Conductor Jacketed PW ! ! ! 18
Single Conductor Armored PY ! ! ! 19 SIGNAL – 600V Individual & Collective Screened 125ºC
Multi Pair/ Multi Triad PD ! ! ! 20
Multi Pair/ Multi Triad Armored PH ! ! ! 22 VARIABLE FREQUENCY DRIVE – 2kV 125ºC
3 Conductor w/ Split Ground PK ! ! ! 24
3 Conductor w/ Split Ground Armored PL ! ! ! 25



FORMULARIO PARA COTIZACIÓN CABLES TRICAB LATAM📱
Nombre y Apellido

Cables Tricab Modelo PA

6 Tr i c a b F l e x i b l e t y p e P O f f s h o r e C a b l e s i s s u e 1 . 0 * Based on IEEE 45-2002 Table 25 for cables installed in free air, single banked, @ 45°C ambient.
Flexible type P Single Conductor 0.6/1kV 125°C
CATALOG NUMBER OF INSULATION DIAMETER MINIMUM APPROX. AMPACITY* CODE CONDUCTORS (c) THICKNESS OVER BENDING WEIGHT AT 100ºC X INSULATION RADIUS AWG/kcmil (inches) (mm) (inches) (mm) (inches) (lbs/kft)-(kg/km) (Amps)
APPLICATION Offshore oil and gas drilling platforms, land based oil and gas drilling rigs, and marine vessels.
CONSTRUCTION Conductor: Finely stranded tinned annealed copper to ASTM B-33. Stranding significantly exceeds IEEE 1580 Table 11.
Insulation: P-10. Cross-linked, Thermoset, Flame retardant, Oil Resistant to IEEE 1580 Type P . Includes ripcord on 8 AWG and larger.
OPERATING TEMPERATURE -40ºc to +125ºc
VOLTAGE RATING .6/1kV
INSULATION COLOR Black
STANDARDS ASTM B-3 IEC 60228 ASTM B-33 IEC 60092-350 ASTM B-172 IEC 60092-376 ASTM B-174 IEC 60332-1 IEEE 45 IEC 60332-3(A) IEEE 1580 UL 1309 IEEE 1202 CSA C22.2 No. 245
APPROVALS ABS, USCG



FORMULARIO PARA COTIZACIÓN CABLES TRICAB LATAM📱
Nombre y Apellido



Flexible type P Single Conductor Armored 0.6/1kV 125°C series PZ
CATALOG NUMBER OF DIAMETER DIAMETER OVERALL MINIMUM APPROX. AMPACITY* CODE CONDUCTORS (c) OVER OVER DIAMETER BENDING WEIGHT AT 100ºC X INSULATION ARMOR Nom. RADIUS AWG/kcmil (inches) (inches) (inches) (inches) (lbs/kft)-(kg/km) (Amps)
APPLICATION Offshore oil and gas drilling platforms, land based oil and gas drilling rigs, and marine vessels.
CONSTRUCTION Conductor: Finely stranded tinned annealed copper to ASTM B-33. Stranding significantly exceeds IEEE 1580 Table 11.
Insulation: P-10. Cross-linked, Thermoset, Flame retardant, Oil Resistant to IEEE 1580 Type P . Includes ripcord on 8 AWG and larger.
Armor:88% Coverage Bronze Braid.
Ripcord: High strength ripcord under jacket.
Jacket:LSFLEX® S-50. Polyolefinic, Flame Retardant, Low Smoke, Zero Halogen to IEEE 1580 Type TPO.
OPERATING TEMPERATURE -40ºc to +125ºc
VOLTAGE RATING .6/1kV
CORE COLOR White
JACKET COLOR Black
STANDARDS ASTM B-3 IEC 60228 ASTM B-33 IEC 60092-350 ASTM B-172 IEC 60092-376 ASTM B-174 IEC 60332-1 IEEE 45 IEC 60332-3(A) IEEE 1580 UL 1309 IEEE 1202 CSA C22.2 No. 245
APPROVALS ABS, USCG



FORMULARIO PARA COTIZACIÓN CABLES TRICAB LATAM📱
Nombre y Apellido



Cables Tricab Modelo PB

8 Tr i c a b F l e x i b l e t y p e P O f f s h o r e C a b l e s i s s u e 1 . 0
* Based on IEEE 45-2002 Table 25 for cables installed in free air, single banked, @ 45°C ambient.
Flexible type P Multi Conductor Power 0.6/1kV 125°C
CATALOG NUMBER OF DIAMETER OVERALL MINIMUM APPROX. AMPACITY* CODE CONDUCTORS (c) OVER DIAMETER BENDING WEIGHT AT 100ºC X INSULATION Nom. RADIUS AWG/kcmil (inches) (mm) (inches) (mm) (inches) (lbs/kft)-(kg/km) (Amps)
APPLICATION Offshore oil and gas drilling platforms, land based oil and gas drilling rigs, and marine vessels.
CONSTRUCTION Conductor: Finely stranded tinned annealed copper to ASTM B-33. Stranding significantly exceeds IEEE 1580 Table 11.
Insulation: P-10. Cross-linked, Thermoset, Flame retardant, Oil Resistant to IEEE 1580 Type P . Includes ripcord on 8 AWG and larger.
Assembly: Conductors cabled with optional fillers and binder tape.
Ripcord: High strength ripcord under jacket.
Jacket: LSFLEX® S-50. Polyolefinic, Flame Retardant, Low Smoke, Zero Halogen to IEEE 1580 Type TPO.
OPERATING TEMPERATURE -40ºc to +125ºc
VOLTAGE RATING .6/1kV
CORE COLOR To customer specification.
JACKET COLOR Black
STANDARDS ASTM B-3 IEC 60228 ASTM B-33 IEC 60092-350 ASTM B-172 IEC 60092-376 ASTM B-174 IEC 60332-1 IEEE 45 IEC 60332-3(A) IEEE 1580 UL 1309 IEEE 1202 CSA C22.2 No. 245
APPROVALS ABS, USCG



Cables Tricab Modelo Flexible type P Multi Conductor Power 0.6/1kV 125°C

Cables Tricab Modelo Flexible type P Multi Conductor Power Armored 0.6/1kV 125°C

APPLICATION Offshore oil and gas drilling platforms, land based oil and gas drilling rigs, and marine vessels.
CONSTRUCTION Conductor: Finely stranded tinned annealed copper to ASTM B-33. Stranding significantly exceeds IEEE 1580 Table 11.
Insulation: P-10. Cross-linked, Thermoset, Flame retardant, Oil Resistant to IEEE 1580 Type P . Includes ripcord on 8 AWG and larger.
Assembly: Conductors cabled with optional fillers and binder tape.
Ripcord: High strength ripcord under bedding.
Bedding: LSFLEX® S-50. Polyolefinic, Flame Retardant, Low Smoke, Zero Halogen to IEEE 1580 Type TPO.
Armor: 88% Coverage Bronze Braid.
Ripcord: High strength ripcord under jacket. Jacket: LSFLEX® S-50. Polyolefinic, Flame Retardant, Low Smoke, Zero Halogen to IEEE 1580 Type TPO.
OPERATING TEMPERATURE -40ºc to +125ºc
VOLTAGE RATING .6/1kV
CORE COLOR To customer specification.
JACKET COLOR Black
STANDARDS ASTM B-3 IEC 60228 ASTM B-33 IEC 60092-350 ASTM B-172 IEC 60092-376 ASTM B-174 IEC 60332-1 IEEE 45 IEC 60332-3(A) IEEE 1580 UL 1309 IEEE 1202 CSA C22.2 No. 245
APPROVALS ABS, USCG



Cables Tricab Modelo PG

12 Tr i c a b F l e x i b l e t y p e P O f f s h o r e C a b l e s i s s u e 1 . 0
Flexible type P Multi Conductor Power Armored 0.6/1kV 125°C



FORMULARIO PARA COTIZACIÓN CABLES TRICAB LATAM📱
Nombre y Apellido



Cables Tricab Modelo PS

14 Tr i c a b F l e x i b l e t y p e P O f f s h o r e C a b l e s i s s u e 1 . 0
Flexible type P Single Conductor 2kV 125°C
CATALOG NUMBER OF INSULATION DIAMETER MINIMUM APPROX. AMPACITY* CODE CONDUCTORS (c) THICKNESS OVER BENDING WEIGHT AT 100ºC X INSULATION RADIUS AWG/kcmil (inches) (mm) (inches) (mm) (inches) (lbs/kft)-(kg/km) (Amps)
APPLICATION Offshore oil and gas drilling platforms, land based oil and gas drilling rigs, and marine vessels.
CONSTRUCTION Conductor: Finely stranded tinned annealed copper to ASTM B-33. Stranding significantly exceeds IEEE 1580 Table 11.
Insulation: P-10. Cross-linked, Thermoset, Flame retardant, Oil Resistant to IEEE 1580 Type P . Includes ripcord on 8 AWG and larger.
OPERATING TEMPERATURE -40ºc to +125ºc
VOLTAGE RATING 2kV
INSULATION COLOR Black
STANDARDS ASTM B-3 IEC 60228 ASTM B-33 IEC 60092-350 ASTM B-172 IEC 60092-376 ASTM B-174 IEC 60332-1 IEEE 45 IEC 60332-3(A) IEEE 1580 UL 1309 IEEE 1202 CSA C22.2 No. 245
APPROVALS ABS, USCG



Resultado de imagen para plataforma offshore





FORMULARIO PARA COTIZACIÓN CABLES TRICAB LATAM📱
Nombre y Apellido



Cables Tricab Modelo PNF lexible type P Single Conductor Jacketed 2kV 125°C

CATALOG NUMBER OF INSULATION DIAMETER MINIMUM APPROX. AMPACITY* CODE CONDUCTORS (c) THICKNESS OVER BENDING WEIGHT AT 100ºC X INSULATION RADIUS AWG/kcmil (inches) (mm) (inches) (mm) (inches) (lbs/kft)-(kg/km) (Amps)
APPLICATION Offshore oil and gas drilling platforms, land based oil and gas drilling rigs, and marine vessels.
CONSTRUCTION Conductor: Finely stranded tinned annealed copper to ASTM B-33. Stranding significantly exceeds IEEE 1580 Table 11.
Insulation: P-10. Cross-linked, Thermoset, Flame retardant, Oil Resistant to IEEE 1580 Type P . Includes ripcord on 8 AWG and larger.
Ripcord: High strength ripcord under jacket.
Jacket: LSFLEX® S-50. Polyolefinic, Flame Retardant, Low Smoke, Zero Halogen to IEEE 1580 Type TPO.
OPERATING TEMPERATURE -40ºc to +125ºc
VOLTAGE RATING 2kV
CORE COLOR White
JACKET COLOR Black
STANDARDS ASTM B-3 IEC 60228 ASTM B-33 IEC 60092-350 ASTM B-172 IEC 60092-376 ASTM B-174 IEC 60332-1 IEEE 45 IEC 60332-3(A) IEEE 1580 UL 1309 IEEE 1202 CSA C22.2 No. 245
APPROVALS ABS, USCG



Cables Tricab Modelo PX

16 Tr i c a b F l e x i b l e t y p e P O f f s h o r e C a b l e s i s s u e 1 . 0
Flexible type P Single Conductor Armored 2kV 125°C
CATALOG NUMBER OF DIAMETER DIAMETER OVERALL MINIMUM APPROX. AMPACITY* CODE CONDUCTORS (c) OVER OVER DIAMETER BENDING WEIGHT AT 100ºC X INSULATION ARMOR Nom. RADIUS AWG/kcmil (inches) (inches) (inches) (inches) (lbs/kft)-(kg/km) (Amps) PXA-PFBD/1A8BK 1c 8 0.266 0.316 0.420 2.5 146 – 217 72 PXA-PFBD/1A6BK 1c 6 0.306 0.356 0.460 2.8 191 – 284 96 PXA-PFBD/1A4BK 1c 4 0.356 0.406 0.510 3.1 255 – 379 128 PXA-PFBD/1A2BK 1c 2 0.416 0.466 0.605 3.6 364 – 542 169 PXA-PFBD/1A1BK 1c 1 0.466 0.516 0.655 3.9 439 – 653 194 PXA-PFBD/1A1/0BK 1c 1/0 0.511 0.561 0.700 4.2 524 – 780 227 PXA-PFBD/1A2/0BK 1c 2/0 0.561 0.611 0.750 4.5 628 – 934 262 PXA-PFBD/1A3/0BK 1c 3/0 0.611 0.661 0.800 4.8 754 – 1122 300 PXA-PFBD/1A4/0BK 1c 4/0 0.686 0.736 0.920 5.5 949 – 1412 351
APPLICATION Offshore oil and gas drilling platforms, land based oil and gas drilling rigs, and marine vessels.
CONSTRUCTION Conductor: Finely stranded tinned annealed copper to ASTM B-33. Stranding significantly exceeds IEEE 1580 Table 11.
Insulation: P-10. Cross-linked, Thermoset, Flame retardant, Oil Resistant to IEEE 1580 Type P . Includes ripcord on 8 AWG and larger.
Armor: 88% Coverage Bronze Braid.
Ripcord: High strength ripcord under jacket.
Jacket: LSFLEX® S-50. Polyolefinic, Flame Retardant, Low Smoke, Zero Halogen to IEEE 1580 Type TPO.
OPERATING TEMPERATURE -40ºc to +125ºc
VOLTAGE RATING 2kV
CORE COLOR White
JACKET COLOR Black
STANDARDS ASTM B-3 IEC 60228 ASTM B-33 IEC 60092-350 ASTM B-172 IEC 60092-376 ASTM B-174 IEC 60332-1 IEEE 45 IEC 60332-3(A) IEEE 1580 UL 1309 IEEE 1202 CSA C22.2 No. 245
APPROVALS ABS, USCG



Resultado de imagen para tricab marine cable



Cables Tricab Modelo F lexible type P Single Conductor 2kV Heavy Duty 125°C
CATALOG NUMBER OF INSULATION DIAMETER MINIMUM APPROX. AMPACITY* CODE CONDUCTORS (c) THICKNESS OVER BENDING WEIGHT AT 100ºC X INSULATION RADIUS AWG/kcmil (inches) (mm) (inches) (mm) (inches) (lbs/kft)-(kg/km) (Amps) PT-XXXD/1A4/0BK 1c 4/0 0.105 2.67 0.771 19.58 3.1 773 – 1150 351 PT-XXXD/1A262BK 1c 262 0.105 2.67 0.841 21.36 3.4 938 – 1396 407 PT-XXXD/1A313BK 1c 313 0.105 2.67 0.876 22.25 3.5 1112 – 1655 455 PT-XXXD/1A373BK 1c 373 0.105 2.67 0.931 23.65 3.7 1304 – 1940 516 PT-XXXD/1A444BK 1c 444 0.105 2.67 1.009 25.63 4.0 1505 – 2239 588 PT-XXXD/1A535BK 1c 535 0.120 3.05 1.087 27.61 4.3 1795 – 2671 630 PT-XXXD/1A646BK 1c 646 0.120 3.05 1.182 30.02 4.7 2210 – 3288 731 PT-XXXD/1A777BK 1c 777 0.120 3.05 1.282 32.56 5.1 2638 – 3925 822 PT-XXXD/1A1111BK 1c 1111 0.120 3.05 1.502 38.15 6.0 3724 – 5541 1025
APPLICATION Offshore oil and gas drilling platforms, land based oil and gas drilling rigs, and marine vessels.
CONSTRUCTION Conductor: Finely stranded tinned annealed copper to ASTM B-33. Stranding significantly exceeds IEEE 1580 Table 11.
Insulation: P-10. Cross-linked, Thermoset, Flame retardant, Oil Resistant to IEEE 1580 Type P . Includes ripcord on 8 AWG and larger.
OPERATING TEMPERATURE -40ºc to +125ºc
VOLTAGE RATING 2kV Heavy Duty
INSULATION COLOR Black
STANDARDS ASTM B-3 IEC 60228 ASTM B-33 IEC 60092-350 ASTM B-172 IEC 60092-376 ASTM B-174 IEC 60332-1 IEEE 45 IEC 60332-3(A) IEEE 1580 UL 1309 IEEE 1202 CSA C22.2 No. 245
APPROVALS ABS, USCG



Resultado de imagen para tricab marine cable





FORMULARIO PARA COTIZACIÓN CABLES TRICAB LATAM📱
Nombre y Apellido



Cables Tricab Modelo PW

18 Tr i c a b F l e x i b l e t y p e P O f f s h o r e C a b l e s i s s u e 1 . 0
Flexible type P Single Conductor Jacketed 2kV Heavy Duty 125°C
* Based on IEEE 45-2002 Table 25 for cables installed in free air, single banked, @ 45°C ambient.
CATALOG NUMBER OF DIAMETER OVERALL MINIMUM APPROX. AMPACITY* CODE CONDUCTORS (c) OVER DIAMETER BENDING WEIGHT AT 100ºC X INSULATION Nom. RADIUS AWG/kcmil (inches) (mm) (inches) (mm) (inches) (lbs/kft)-(kg/km) (Amps)
APPLICATION Offshore oil and gas drilling platforms, land based oil and gas drilling rigs, and marine vessels.
CONSTRUCTION Conductor: Finely stranded tinned annealed copper to ASTM B-33. Stranding significantly exceeds IEEE 1580 Table 11.
Insulation: P-10. Cross-linked, Thermoset, Flame retardant, Oil Resistant to IEEE 1580 Type P . Includes ripcord on 8 AWG and larger.
Ripcord: High strength ripcord under jacket.
Jacket: LSFLEX® S-50. Polyolefinic, Flame Retardant, Low Smoke, Zero Halogen to IEEE 1580 Type TPO.
OPERATING TEMPERATURE -40ºc to +125ºc
VOLTAGE RATING 2kV Heavy Duty
CORE COLOR White
JACKET COLOR Black
STANDARDS ASTM B-3 IEC 60228 ASTM B-33 IEC 60092-350 ASTM B-172 IEC 60092-376 ASTM B-174 IEC 60332-1 IEEE 45 IEC 60332-3(A) IEEE 1580 UL 1309 IEEE 1202 CSA C22.2 No. 245
APPROVALS ABS, USCG



Cables Tricab Modelo PY

i s s u e 1 . 0 Tr i c a b F l e x i b l e t y p e P O f f s h o r e C a b l e s 19
* Based on IEEE 45-2002 Table 25 for cables installed in free air, single banked, @ 45°C ambient.
Flexible type P Single Conductor Armored 2kV Heavy Duty 125°C
CATALOG NUMBER OF DIAMETER DIAMETER OVERALL MINIMUM APPROX. AMPACITY* CODE CONDUCTORS (c) OVER OVER DIAMETER BENDING WEIGHT AT 100ºC X INSULATION ARMOR Nom. RADIUS AWG/kcmil (inches) (inches) (inches) (inches) (lbs/kft)-(kg/km) (Amps)
APPLICATION Offshore oil and gas drilling platforms, land based oil and gas drilling rigs, and marine vessels.
CONSTRUCTION Conductor: Finely stranded tinned annealed copper to ASTM B-33. Stranding significantly exceeds IEEE 1580 Table 11.
Insulation: P-10. Cross-linked, Thermoset, Flame retardant, Oil Resistant to IEEE 1580 Type P . Includes ripcord on 8 AWG and larger.
Armor: 88% Coverage Bronze Braid.
Ripcord: High strength ripcord under jacket.
Jacket: LSFLEX® S-50. Polyolefinic, Flame Retardant, Low Smoke, Zero Halogen to IEEE 1580 Type TPO.
OPERATING TEMPERATURE -40ºc to +125ºc
VOLTAGE RATING 2kV Heavy Duty
CORE COLOR White
JACKET COLOR Black
STANDARDS ASTM B-3 IEC 60228 ASTM B-33 IEC 60092-350 ASTM B-172 IEC 60092-376 ASTM B-174 IEC 60332-1 IEEE 45 IEC 60332-3(A) IEEE 1580 UL 1309 IEEE 1202 CSA C22.2 No. 245
APPROVALS ABS, USCG



Resultado de imagen para plataforma offshore



Cables Tricab Modelo PD

20 Tr i c a b F l e x i b l e t y p e P O f f s h o r e C a b l e s i s s u e 1 . 0
Flexible type P Multi Pair / Multi Triad Signal 600V 125°C
* Based on IEEE 45-2002 Table 25 for cables installed in free air, single banked, @ 45°C ambient.
CATALOG NUMBER OF DIAMETER OVERALL MINIMUM APPROX. AMPACITY* CODE PAIRS (p) / TRIADS (t) OVER DIAMETER BENDING WEIGHT AT 100ºC X INSULATION Nom. RADIUS AWG (inches) (mm) (inches) (mm) (inches) (lbs/kft)-(kg/km) (Amps)
APPLICATION Offshore oil and gas drilling platforms, land based oil and gas drilling rigs, and marine vessels.
CONSTRUCTION Conductor: Finely stranded tinned annealed copper to ASTM B-33. Stranding significantly exceeds IEEE 1580 Table 11.
Insulation: P-10. Cross-linked, Thermoset, Flame retardant, Oil Resistant to IEEE 1580 Type P .
Pairs/Triads: Individually shielded with Aluminum/Polyester Tape and Tinned Copper Drain Wire.
Assembly: Pairs/Triads cabled with optional fillers.
Overall Shield: Aluminum/Polyester Tape and Tinned Copper Drain Wire.
Ripcord: High strength ripcord under jacket.
Jacket: LSFLEX® S-50. Polyolefinic, Flame Retardant, Low Smoke, Zero Halogen to IEEE 1580 Type TPO.
OPERATING TEMPERATURE -40ºc to +125ºc
VOLTAGE RATING .6/1kV
CORE COLORS To customer specification.
JACKET COLOR Black
STANDARDS ASTM B-3 IEC 60228 ASTM B-33 IEC 60092-350 ASTM B-172 IEC 60092-376 ASTM B-174 IEC 60332-1 IEEE 45 IEC 60332-3(A) IEEE 1580 UL 1309 IEEE 1202 CSA C22.2 No. 245
APPROVALS ABS, USCG



FORMULARIO PARA COTIZACIÓN CABLES TRICAB LATAM📱
Nombre y Apellido





Cables Tricab Modelo PH

22 Tr i c a b F l e x i b l e t y p e P O f f s h o r e C a b l e s i s s u e 1 . 0
Flexible type P Multi Pair / Multi Triad Signal Armored 600V 125°C
* Based on IEEE 45-2002 Table 25 for cables installed in free air, single banked, @ 45°C ambient.
CATALOG NUMBER OF DIAMETER DIAMETER DIAMETER OVERALL MINIMUM APPROX. AMPACITY* CODE PAIRS (p) / TRIADS (t) OVER OVER OVER DIAMETER BENDING WEIGHT AT 100ºC X INSULATION BEDDING ARMOR Nom. RADIUS AWG (inches) (inches) (inches) (inches) (inches) (lbs/kft)-(kg/km) (Amps)
APPLICATION Offshore oil and gas drilling platforms, land based oil and gas drilling rigs, and marine vessels. CONSTRUCTION Conductor: Finely stranded tinned annealed copper to ASTM B-33. Stranding significantly exceeds IEEE 1580 Table 11.
Insulation: P-10. Cross-linked, Thermoset, Flame retardant, Oil Resistant to IEEE 1580 Type P .
Pairs/Triads: Individually shielded with Aluminum/Polyester Tape and Tinned Copper Drain Wire.
Assembly: Pairs/Triads cabled with optional fillers.
Overall Shield: Aluminum/Polyester Tape and Tinned Copper Drain Wire.
Ripcord: High strength ripcord under bedding. Bedding: LSFLEX® S-50. Polyolefinic, Flame Retardant, Low Smoke, Zero Halogen to IEEE 1580 Type TPO.
Armor: 88% Coverage Bronze Braid.
Ripcord: High strength ripcord under jacket. Jacket: LSFLEX® S-50. Polyolefinic, Flame Retardant, Low Smoke, Zero Halogen to IEEE 1580 Type TPO.
OPERATING TEMPERATURE -40ºc to +125ºc
VOLTAGE RATING 600V
CORE COLORS To customer specification.
JACKET COLOR Black
STANDARDS ASTM B-3 IEC 60228 ASTM B-33 IEC 60092-350 ASTM B-172 IEC 60092-376 ASTM B-174 IEC 60332-1 IEEE 45 IEC 60332-3(A) IEEE 1580 UL 1309 IEEE 1202 CSA C22.2 No. 245
APPROVALS ABS, USCG



Cables Tricab Modelo PK

24 Tr i c a b F l e x i b l e t y p e P O f f s h o r e C a b l e s i s s u e 1 . 0
Flexible type P Variable Frequency Drive Cable 2kV, 125°C
CATALOG NUMBER OF GROUND DIAMETER OVERALL MINIMUM APPROX. AMPACITY* CODE CONDUCTORS (c) SIZE OVER DIAMETER BENDING WEIGHT AT 100ºC X SHIELD Nom. RADIUS AWG/kcmil AWG (inches) (inches) (inches) (lbs/kft)-(kg/km) (Amps)
* Based on IEEE 45-2002 Table 25 for cables installed in free air, single banked, @ 45°C ambient.
PKA-PFTD/3A8BK 3c 8 3 @ 14 0.632 0.775 4.7 382 – 568 52 PKA-PFTD/3A6BK 3c 6 3 @ 12 0.718 0.905 5.4 538 – 801 70 PKA-PFTD/3A4BK 3c 4 3 @ 12 0.826 1.010 6.1 728 – 1083 92 PKA-PFTD/3A2BK 3c 2 3 @ 10 0.955 1.140 6.8 1017 – 1513 122 PKA-PFTD/3A1BK 3c 1 3 @ 10 1.064 1.250 7.5 1243 – 1850 143 PKA-PFTD/3A1/0BK 3c 1/0 3 @ 10 1.161 1.345 8.1 1495 – 2225 164 PKA-PFTD/3A2/0BK 3c 2/0 3 @ 10 1.268 1.455 8.7 1806 – 2687 188 PKA-PFTD/3A3/0BK 3c 3/0 3 @ 8 1.376 1.560 9.4 2185 – 3251 218 PKA-PFTD/3A4/0BK 3c 4/0 3 @ 8 1.537 1.790 10.7 2770 – 4122 252 PKA-PPTD/3A262BK 3c 262 3 @ 6 1.732 1.985 11.9 3366 – 5009 294 PKA-PVTD/3A313BK 3c 313 3 @ 6 1.807 2.060 12.4 3918 – 5830 321 PKA-PFTD/3A373BK 3c 373 3 @ 6 1.925 2.180 13.1 4542 – 6758 361 PKA-PFTD/3A444BK 3c 444 3 @ 6 2.093 2.345 14.1 5208 – 7750 411
APPLICATION Offshore oil and gas drilling platforms, land based oil and gas drilling rigs, and marine vessels.
CONSTRUCTION Conductor: Finely stranded tinned annealed copper to ASTM B-33. Stranding significantly exceeds IEEE 1580 Table 11.
Insulation: P-10. Cross-linked, Thermoset, Flame retardant, Oil Resistant to IEEE 1580 Type P . Includes ripcord on 8 AWG and larger.
Assembly: 3 Conductors plus 3 Split Ground Wires cabled.
Overall Shield: Tinned Copper Braid plus Aluminum/Polyester Shield.
Ripcord: High strength ripcord under jacket.
Jacket: LSFLEX® S-50. Polyolefinic, Flame Retardant, Low Smoke, Zero Halogen to IEEE 1580 Type TPO.
OPERATING TEMPERATURE -40ºc to +125ºc
VOLTAGE RATING 2kV
CORE COLORS To customer specification.
JACKET COLOR Black
STANDARDS ASTM B-3 IEC 60228 ASTM B-33 IEC 60092-350 ASTM B-172 IEC 60092-376 ASTM B-174 IEC 60332-1 IEEE 45 IEC 60332-3(A) IEEE 1580 UL 1309 IEEE 1202 CSA C22.2 No. 245
APPROVALS ABS, USC



FORMULARIO PARA COTIZACIÓN CABLES TRICAB LATAM📱
Nombre y Apellido



Cables Tricab Modelo Flexible type P Armored Variable Frequency Drive Cable 2kV, 125°C
* Based on IEEE 45-2002 Table 25 for cables installed in free air, single banked, @ 45°C ambient.
CATALOG NUMBER OF GROUND DIAMETER DIAMETER OVERALL MINIMUM APPROX. AMPACITY* CODE CONDUCTORS (c) SIZE OVER OVER DIAMETER BENDING WEIGHT AT 100ºC X BEDDING ARMOR Nom. RADIUS AWG/kcmil AWG (inches) (inches) (inches) (inches) (lbs/kft)-(kg/km) (Amps) PLA-PFWD/3A8BK 3c 8 3 @ 14 0.775 0.825 1.005 6.0 619 – 921 52 PLA-PFWD/3A6BK 3c 6 3 @ 12 0.905 0.955 1.135 6.8 812 – 1208 70 PLA-PFWD/3A4BK 3c 4 3 @ 12 1.010 1.060 1.240 7.4 1032 – 1536 92 PLA-PFWD/3A2BK 3c 2 3 @ 10 1.140 1.190 1.370 8.2 1356 – 2018 122 PLA-PFWD/3A1BK 3c 1 3 @ 10 1.250 1.300 1.480 8.9 1613 – 2400 143 PLA-PFWD/3A1/0BK 3c 1/0 3 @ 10 1.345 1.395 1.575 9.5 1892 – 2815 164 PLA-PFWD/3A2/0BK 3c 2/0 3 @ 10 1.455 1.505 1.750 10.5 2305 – 3430 188 PLA-PFWD/3A3/0BK 3c 3/0 3 @ 8 1.560 1.610 1.860 11.2 2718 – 4044 218 PLA-PFWD/3A4/0BK 3c 4/0 3 @ 8 1.790 1.840 2.090 12.5 3376 – 5023 252 PLA-PFWD/3A262BK 3c 262 3 @ 6 1.985 2.035 2.285 13.7 4035 – 6004 294 PLA-PFWD/3A313BK 3c 313 3 @ 6 2.060 2.110 2.360 14.2 4611 – 6861 321 PLA-PFWD/3A373BK 3c 373 3 @ 6 2.180 2.230 2.475 14.9 5272 – 7845 361 PLA-PFWD/3A444BK 3c 444 3 @ 6 2.345 2.395 2.645 15.9 5992 – 8916 411
APPLICATION Offshore oil and gas drilling platforms, land based oil and gas drilling rigs, and marine vessels.
CONSTRUCTION Conductor: Finely stranded tinned annealed copper to ASTM B-33. Stranding significantly exceeds IEEE 1580 Table 11.
Insulation: P-10. Cross-linked, Thermoset, Flame retardant, Oil Resistant to IEEE 1580 Type P . Includes ripcord on 8 AWG and larger.
Assembly: 3 Conductors plus 3 Split Ground Wires cabled.
Overall Shield: Tinned Copper Braid plus Aluminum/Polyester Shield.
Ripcord: High strength ripcord under bedding.
Bedding: LSFLEX® S-50. Polyolefinic, Flame Retardant, Low Smoke, Zero Halogen to IEEE 1580 Type TPO.
Armor: 88% Coverage Bronze Braid.
Ripcord: High strength ripcord under jacket.
Jacket: LSFLEX® S-50. Polyolefinic, Flame Retardant, Low Smoke, Zero Halogen to IEEE 1580 Type TPO.
OPERATING TEMPERATURE -40ºc to +125ºc
VOLTAGE RATING 2kV
CORE COLORS To customer specification.
JACKET COLOR Black
STANDARDS ASTM B-3 IEC 60228 ASTM B-33 IEC 60092-350 ASTM B-172 IEC 60092-376 ASTM B-174 IEC 60332-1 IEEE 45 IEC 60332-3(A) IEEE 1580 UL 1309 IEEE 1202 CSA C22.2 No. 245
APPROVALS ABS, USCG



FORMULARIO PARA COTIZACIÓN CABLES TRICAB LATAM📱
Nombre y Apellido

Acerca de Tricab

Tricab es el fabricante de cables más flexible del mundo, no solo en términos de producto, sino también en términos de trabajar con los clientes para desarrollar soluciones de diseño personalizado para sus necesidades.

TriCab Group es un fabricante de cable australiano bien establecido y muy reconocido. Ofrecemos una amplia gama de cables flexibles que están diseñados para simplificar la instalación en una amplia gama de aplicaciones. En términos generales, atendemos a clientes comerciales e industriales desde nuestras instalaciones de fabricación en Port Melbourne, EE. UU. Y Tailandia.

La empresa se originó en Australia hace más de 40 años. Además de las 3 instalaciones de fabricación, también tenemos 20 oficinas de ventas / distribución en Australia, Nueva Zelanda, Asia y los Estados Unidos. Nuestros productos son muy apreciados en todo el mundo en términos de calidad, seguridad y valor. Hemos evolucionado y mejorado constantemente nuestros procesos y tecnologías, al tiempo que comprendemos la importancia de la simplicidad en las transacciones comerciales.

Sitio web http://www.tricab.com Sector Manufactura eléctrica / electrónica Tamaño de la empresa 201-500 empleados Sede Port Melbourne, Victoria Tipo de financiación privada Fundación 1978 Especialidades Cable eléctrico, Cable marino, Cable costa afuera, Cable VFD, Cable de control y Cable Compuesto
